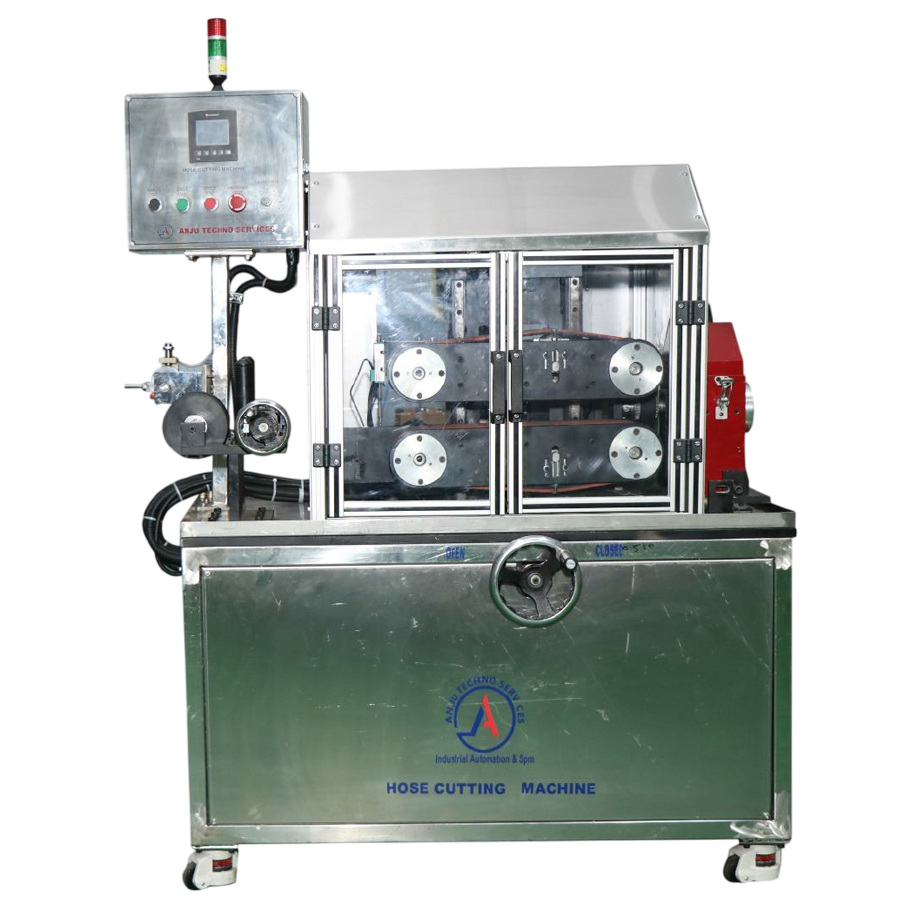

ONLINE/ OFFLINE HOSE CUTTING MACHINE

FEATURES

  • PLC Control Fully Automatic Online Cutting Machine for Yarn Hose
  • Machine Complete Structure will be of SS 304 with Caterpillar / Haul Off Unit Assembly driven by Servo Motor PTO Mechanism with Pulse Feedback Provision
  • Caterpillar / Haul Off Unit consists of Master-Slave Combination of Servo Motor Drive System
  • Possible Cutting Hose Diameter Range: 20 mm – 60 mm with Incorporation of Different Die Sets
  • Incorporation of Ultrasonic Interlocking Sensor-Based Non-Contact Loop Control System to Control Caterpillar Speed
  • Provision for Creating Recipe as per Different Part Number, Part Diameter & Part Length for Ease of Operator
  • High-Speed Pneumatic Wiring
  • Servo Encoder-Based Length Measurement
  • Conveyor / Puller Synchronised
  • Enhanced Safety Quality Features

NYLON TUBE CUTTING MACHINE

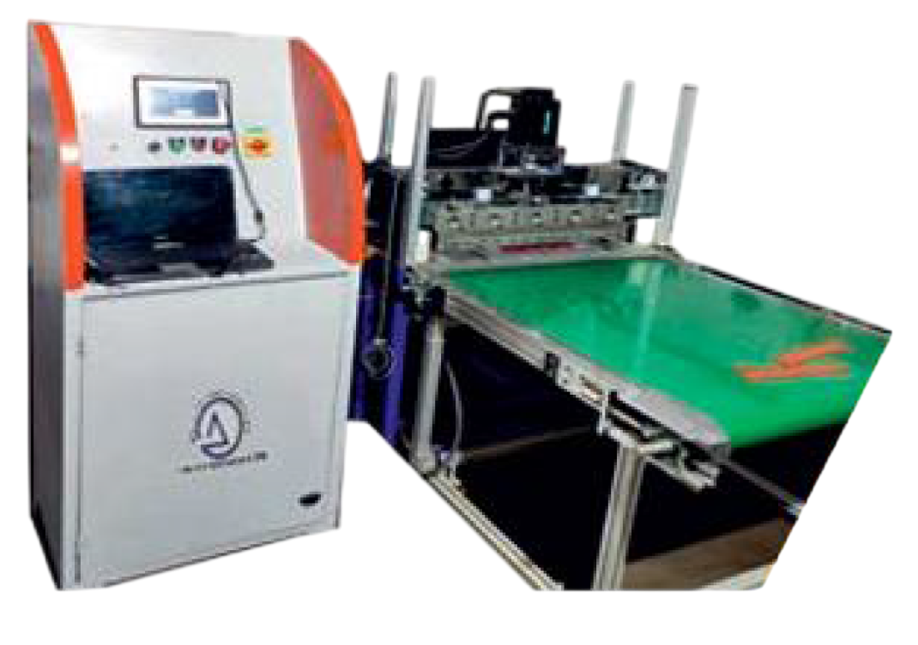

SILICON RUBBER SRTIP CUTTING MACHINE

FEATURES

  • PLC Controlled PTO Driven Automatic Strip Cutting Machine
  • PTO Driven Servo Operated Cutting Mechanism with Vertical Movement
  • AC Drive Operated Feeding Roller with Forward & Reverse Direction Rotation Provision to Feed and Take Back Rubber Strip along with AC Motor Driven Final Take-Up Conveyor
  • Accuracy of ±1% of Set Length
  • Cycle Time of 80 pcs/min with Strip Width of 4.5 mm
  • Provision of Half Cut to Cut Only Rubber Strip and Full Cut to Cut the Complete Base Film
  • Manual & Auto Mode of Running
  • MS Powder Coated Control Panel with 7″ / 3.5″ Operating HMI
