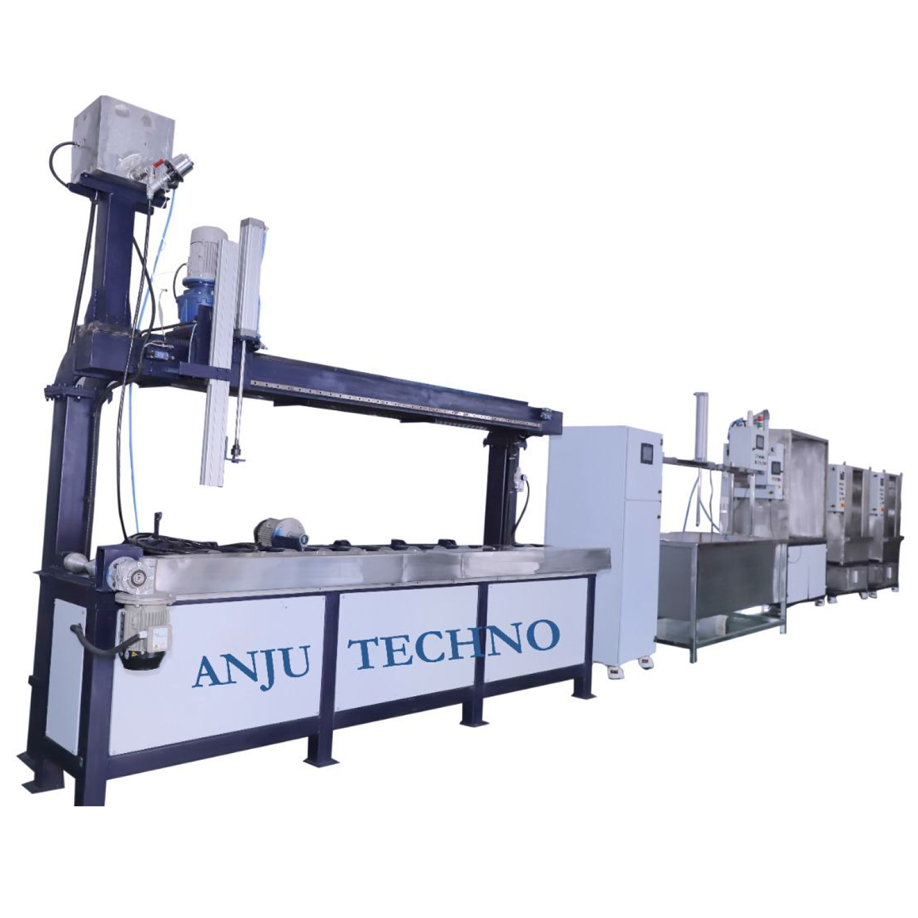

UT CRACK DETECTION MACHINE

  • PLC Controlled CNG Cylinder Crack Detection System
  • Motorised Cylinder Carrying Conveyor with Forward & Backward Movement of Cylinders
  • Motorised Cylinder Rotation Mechanism over Conveyor System
  • Motorised Movement of Ultrasonic Probe Carrying System for Surface Crack Detection
  • Continuous Water Sprinkling over Cylinder Surface for Better Detection
  • Automatic & Manual Mode of Operation
  • Barcode / QR Code Traceability
  • Automatic OK / NG Marking

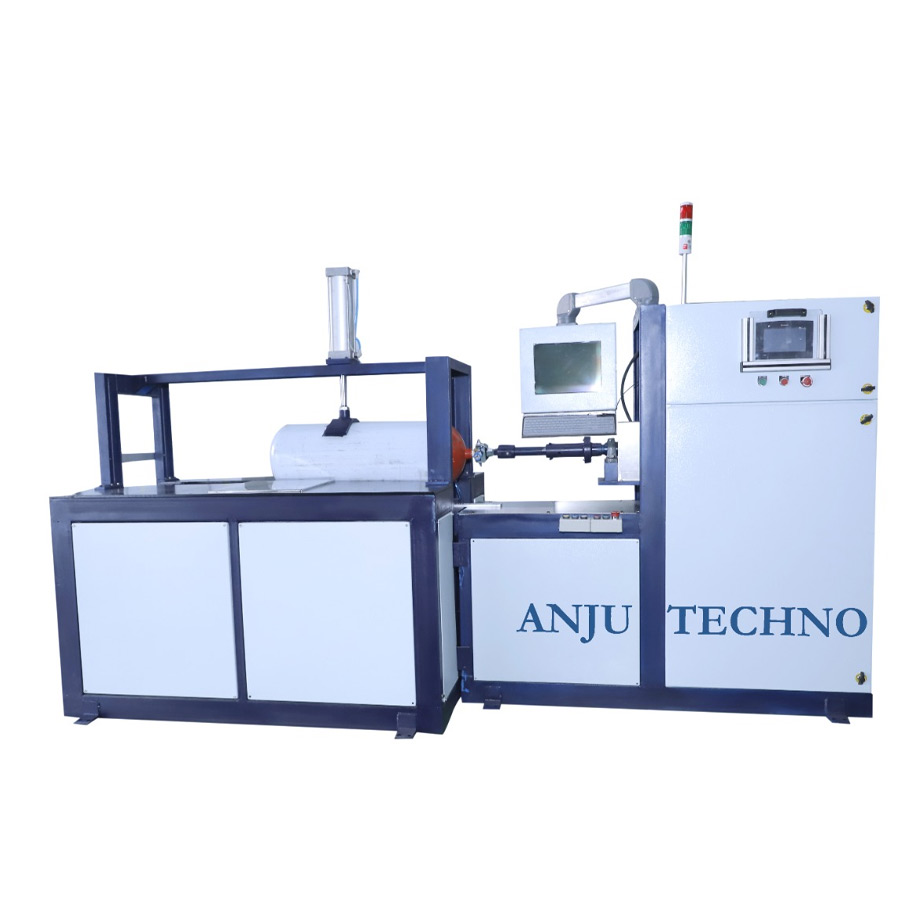

VALVE FITTING

  • PLC Controlled Torque Tightening Mechanism for CNG Cylinders
  • Incorporation of Torque Transducer for Measuring Valve Tightening Torque
  • Motorised Rotation System to Generate Required Torque for Valve Tightening
  • Motorised Conveyor System for To & Fro Movement of Cylinders
  • Pneumatic Operated Cylinder Clamping Mechanism
  • Pneumatic Operated Cylinder Unloading Mechanism
  • Automatic & Manual Mode of Operation
  • Weighing Balance Integration for Cylinder Weight Measurement
  • Report Generation in Excel Format
  • Single Station with Provision for Torque Tightening of One Cylinder at a Time

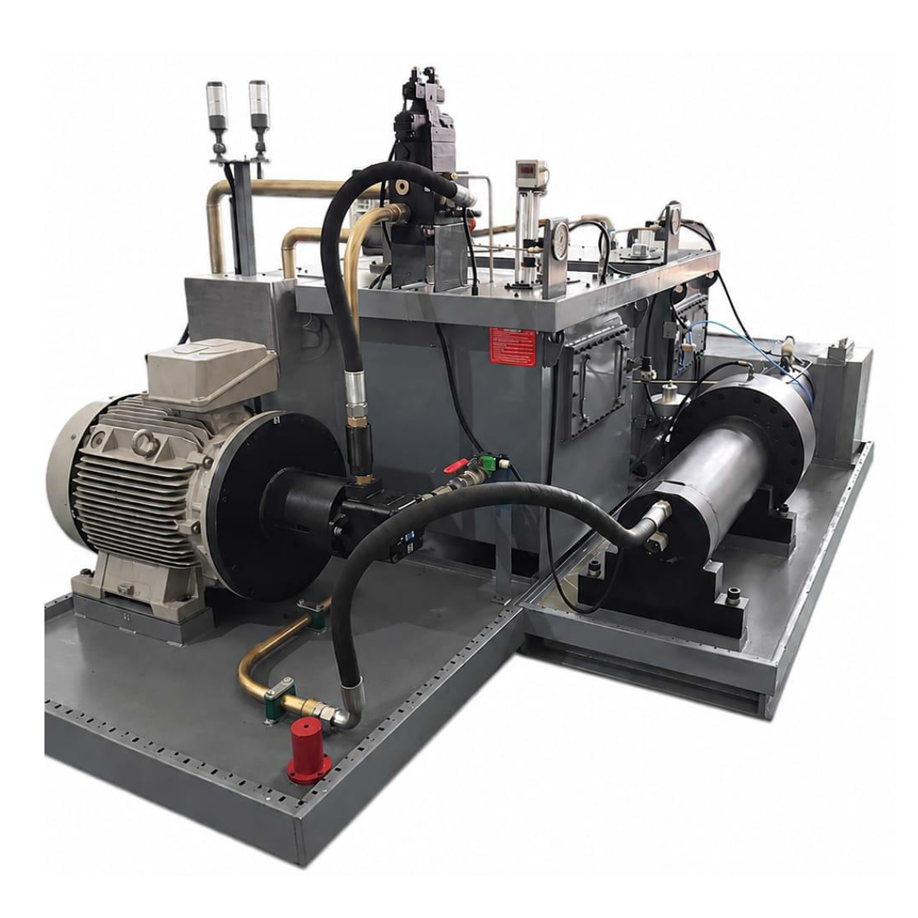

CYCLIC TEST MACHINE

  • PLC Controlled CNG Cylinder Impulse Cyclic Test Machine for Type 1 & Type 4 Cylinders
  • High Pressure Capacity – Up to 400 Bar
  • Common Pressure Display for All 6 Ports
  • Graphical Representation of Pressure on PLC Display
  • Continuous Pressure Increase & Decrease Cycle Operation
  • Maximum Pressure – 400 Bar with User Editable Pressure Setting
  • Hydraulic Pressure Generation using Pressure Intensifier
  • Temperature Sensor Integration for Continuous Logging of Cylinder & Media Temperature
  • Automatic Pressure Drain Valve Integration (Common for All 6 Ports)
  • Proportional Valve Integration for Precise Pressure Control as per Set Limit
  • Desktop PC Integration for Continuous Data Logging in Excel & SCADA Format
  • Data Format Includes Date, Time, Set Pressure, Actual Pressure, Cylinder Temperature & Tank Temperature
  • Fatigue Life Validation & Expansion Monitoring

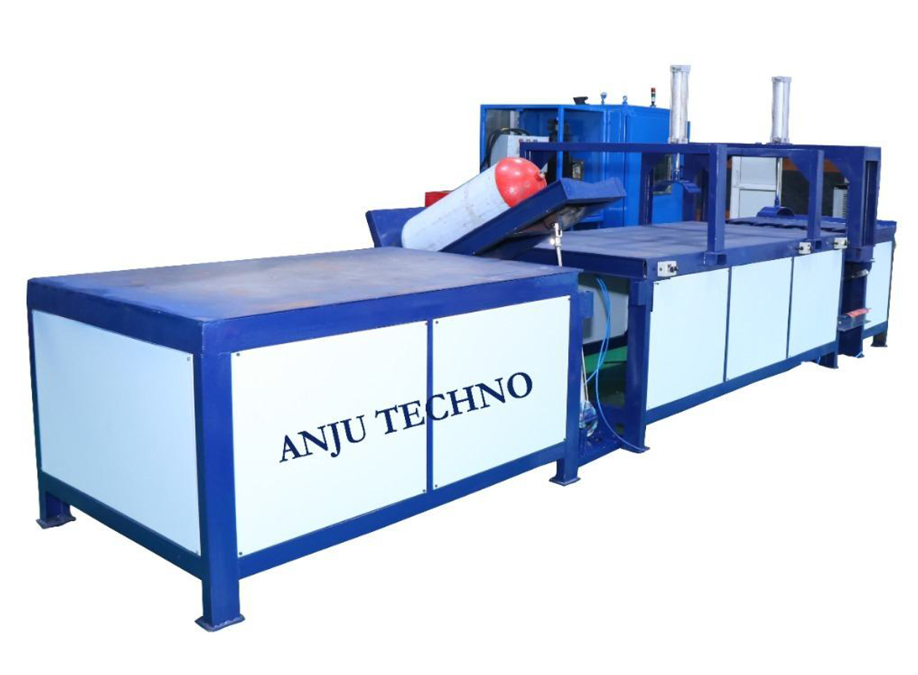

TILTING MACHINE

  • Cylinder Loading, Unloading & Conveyor System
  • Tilting Mechanism for Cylinder Water Draining
  • Transfer Between Conveyors
  • Hydraulic & Pneumatic Lifting Mechanism
  • Motorised Roller Conveyor with Integrated Transfer System
  • Cylinder Clamping Mechanism
  • 90°, 150° & 180° Lifting Capability
  • Heavy Duty Construction
  • MS Structure
  • Safety Interlocks
