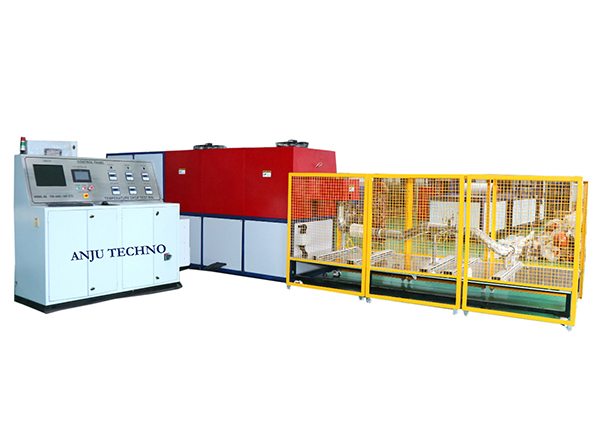

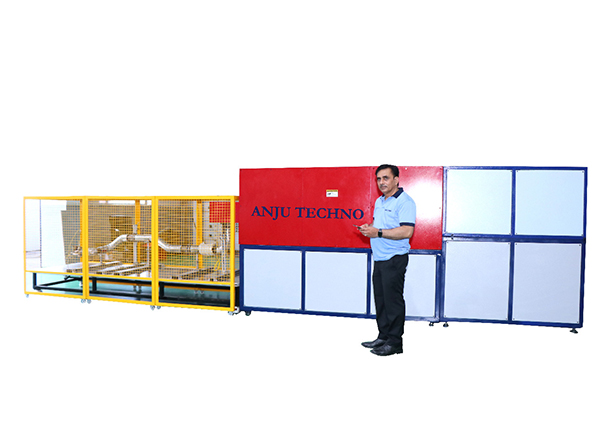

PLC Controlled Thermal Cladding Machine for Exhaust Pipe Assembly of Heavy Automobile
Heat Generating Station with Capacity to generate Compressed Air Temperature of 450*C
High Flow Blowing Unit as a Source of Air to be feed to Heating Station
Heat Control provision through PID Control provision to control Heating rate in order to raise and maintain the temperature at the required set point.
Continuous real time Flow Measurement of Cooled Compressed Air feed to Heating Station
Feed back of actual Flow rate in order to control and maintain the required flow rate using High efficient Heavy Duty Variable Frequency Drive Unit.
Real Time Temperature Measurements at 9 different locations including over the surface of test part assembly and long with several Location of Heat Generating Station
Temperature Resistant Part Resting Fixture of around 3.5Mtr long to rest 3Mtr Parts.
Hot Air of around 400*C is made to pass through the Test part Assembly of 3Mtr. Iong ( with another end open) in order to observe the Temperature reading at different location of Part and their relative difference with time.
SCADA System with real time report management in excel format that will logged real time value of temperature of 9 different location to generate the data history of the same.
