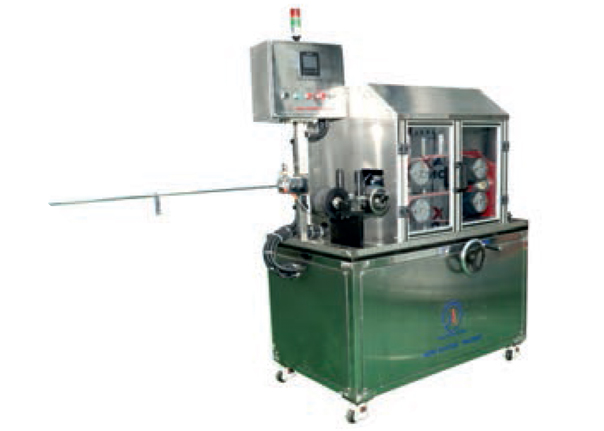

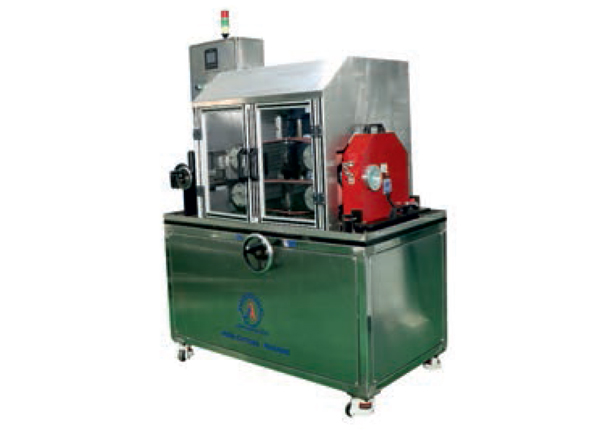

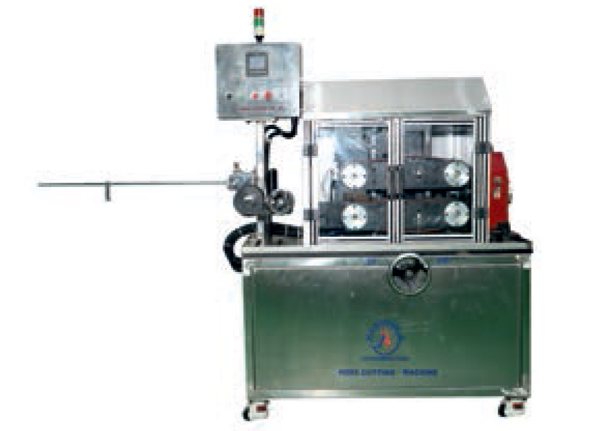

PLC Controlled Fully Automatic On-Line Cutting Machine for Yarn Hose.
Machine Complete Structure will be of SS 304 with Caterpillar/ Haul Off Unit Assembly driven by Servo Motor PTO mechanism with Pulse feedback provision.
Caterpillar/ Haul Off Unit Consist Master Slave Combination of Servo Motor-Drive System.
Possible of Cutting hose with dia. vary from 20mm-60mm with inco ation different die sets.
Rotary Cutter Cutting Assembly operated through Servo Motor.
Incorporation of Ultrasonic Sensor based non contact type Loop Control System to control Caterpillar Speed.
Safety Poka Yoke integration consisting Caterpillar Door Open, Cutter Die Door Open that will not allow to run Machine or Safety Provision.
Provision of creating Recipe as per differ part number, part dia., part length for running ease of operator.

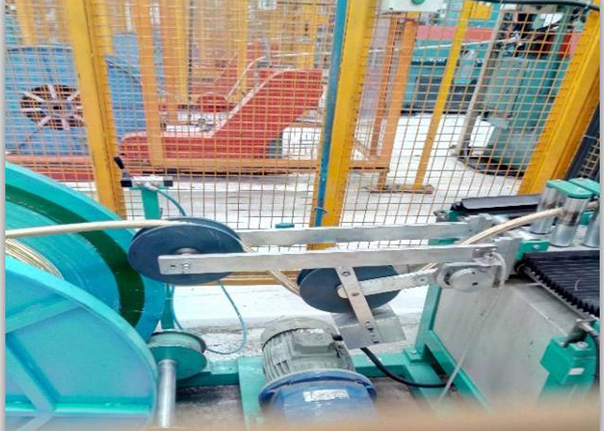

Hose Winder/ Unwinder for High Pressure Hose
HOSE WINDER FOR HIGH PRESSURE RIGID HOSE
SUITABLE FOR VARIABLE DIA – 8MM TO 50MM
AUTOMATIC PITCH SETTING ACCORDING TO DIA
SERVO DRIVEN TRAVERSE UNIT
AC DRIVE CONTROLLED MAIN REEL DRIVE
AUTOMATIC SPEED SYNCHRONIZATION WITH INCOMING LINE SPEED

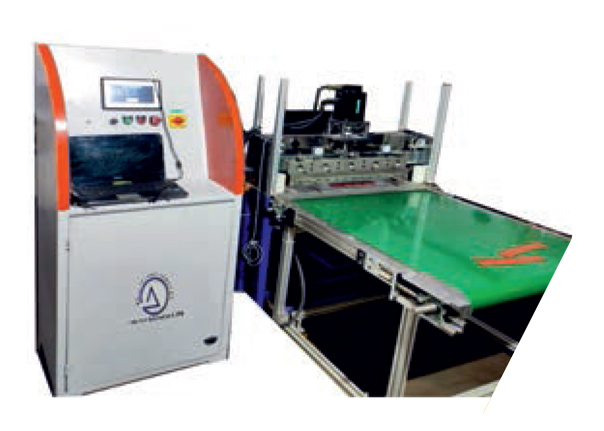

PTO driven Servo Motor operated Cutting mechanism with vertical movement.
Ac drive operated feeding roller with forward and reverse direction rotation provision to feed and take back rubber strip along with AC motor driven final take up conveyor
Accuracy of +/- 1% of set length
Cycle time of 80pc/min with strip width of 4.5mm
Provision of half cut to cut only rubber strip and full cut to cut the complete base film
Manual and auto mode of running
MS powder coated Control Panel with either 7", 3.5" operating HMI
