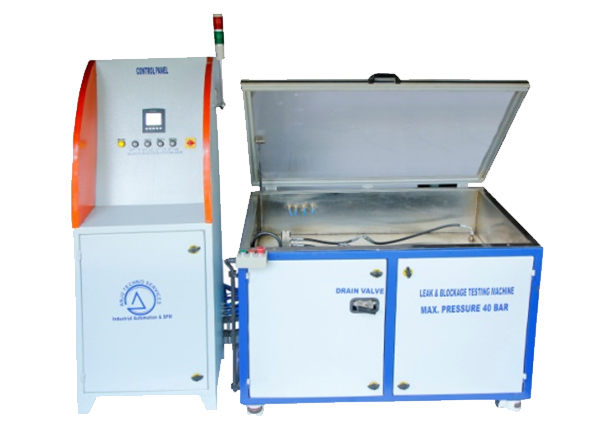

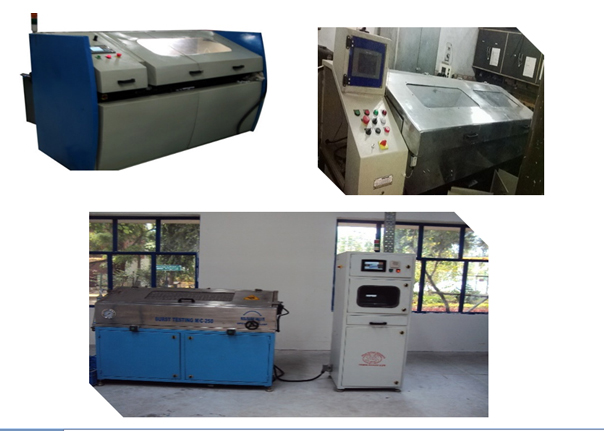

Leakage Testing Machine with Dual Test Pressure Provision ( 40 bar/16Bar)
Pressure Shift will be done through Needle Valve
No. of Ports-04 ( As per customer requirement)
Result Declaration - Common ( However as per customer requirement result declaration of all the testing ports can be common / individual)
Testing Chamber will be of Stainless Steel . However it can be of Mild Steel as per customer requirement.
Manual Door. However there is provision of automatic door as per customer requirement.
Manual Pressure Drain provision. However it can be automatic as per customer requirement. No. of Ports-04 (As per customer requirement)

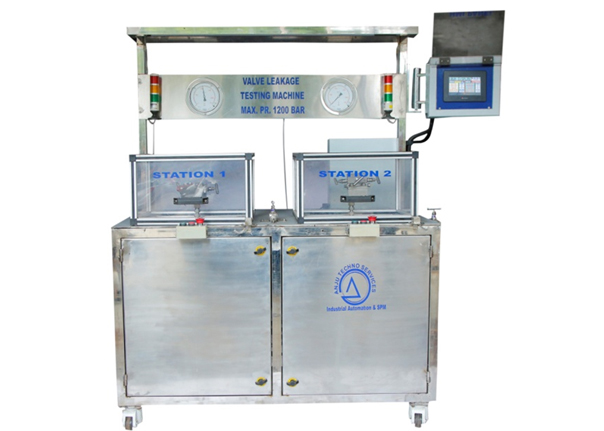

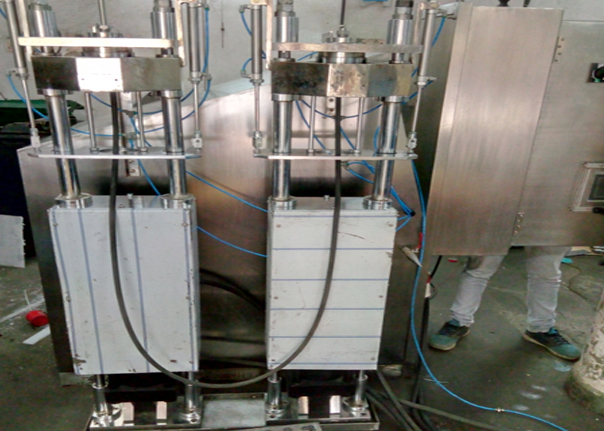

Needle Valve Hydro-Test Machine
Hydro Test of Needle Valve ( Single/Two Station)
Maximum Pressure- 1200 Bar (However variable as per customer requirement)
Manual Pressure Drain . However Provision of Automatic Pressure Drain will be there as per customer recommen-dation
Machine Base Structure can be of Stainless Steel or Mild Steel as per customer requirement.
Individual Result declaration & Testing Provision in case of Two Station Machine along with Individual Pressure Generation Unit.
Incorporation of High End Controller with feature of Audio Result Declaration/ Audio Alarm Generation in any desired Language
Adjustable Cycle Time

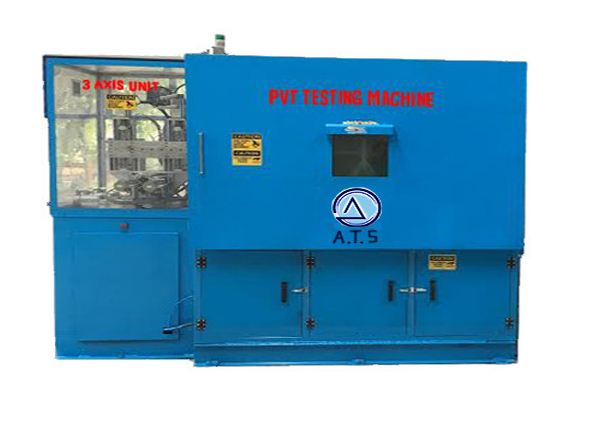

PVT/Durability/Life Cycle Test for SAE, ISO, and Customized Standards
Pressure, Vibration and Temperature Testing
Pressure Impulse –
Max. 6 Bar,
Frequenxy: 1-30 CPM
Media – Air/Oil/Coolant
Impulse Graph - Programmable
Temperature - upto 200 Degree Celsius
Vibration Impulse (Movement) –
Movement Axis - Upto 3 Axis (X,Y,Z)
Movement Frequency - Upto 10 HZ
Movement Amplitude - Upto +30mm
Movement Drive - Servo Driven And Motion Controlled
Ambient Temperature: -45 Degree to +250 Degree Celsius
Automatic Operations with 7/10" HMI and PLC
Adequate Insulation
Chamber Lighting with Inspection Window
Adequate Safety Precaution for Machine and Operator
High Pr. Impulse Cum Leak Test M/C 1000 Bar with Barcode Printer
Impulse PR Range 50-250 Bar Testing PR. Range 100-1000 Bar
Testing Media - Oil/Water
4 Port Common Result Machine
Automatic Door - Polycarbonate Transparent Door
Chamber Made of SS 304 > Automatic Door
Barcode Label Integrated for OK Parts
3.5" Coloured Touchscreen Operated PLC
High Flow ATS Pump and Valves
SS Mirror Finish Sheet for Better Visibility
Dual Manifold with One End Fixed and Other Sliding for Variable Part Length
Autocaster Wheels with Support for Machine Structure
Efficient Lighting Inside Chamber

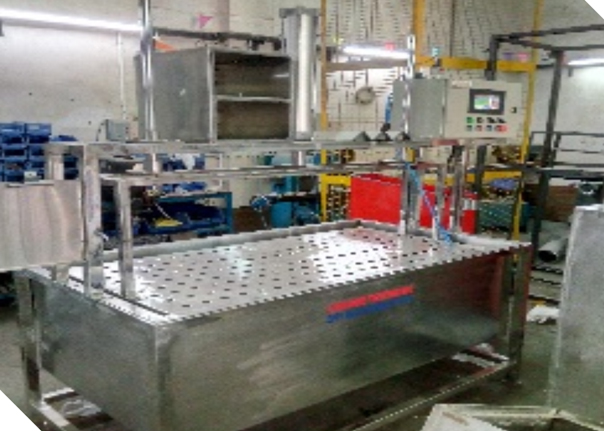

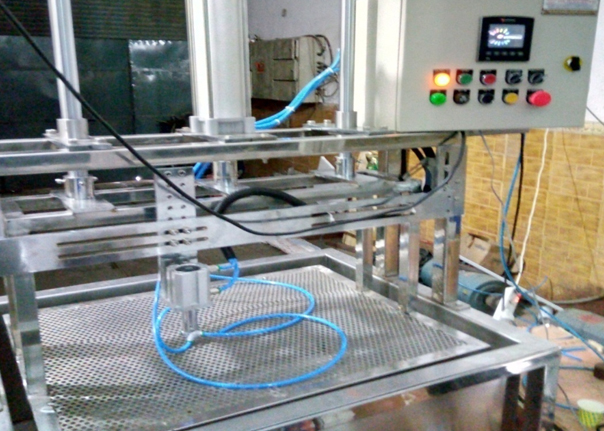

AMG Under Water Leakage Testing Machine (High Accuracy)
Media - Air
Max Pressure - 10 Bar
0.05% Accuracy Transmitter
ndividual Result
7" Coloured Touchscreen Display
All Structure and Tank in SS
Data Logging
Graphical Representation of Test Data
Automatic Pressure Setting from PLC
Auto Clamping Integrated with NG Cycle (In Case of OK Parts will
De-Clamp Automatically, In Case of NG Password Required to Declamp Parts from Fixture)
Rejection Bin Integration
High Pr. Leak Test M/C 1000 Bar with 4 Port IND. Result, Auto Punch and Air Flushing
Testing PR. Range 150 to 1000 Bar
Testing Media - Oil/Water
4 Port Individual Result Machine
Automatic Door - Polycarbonate Transparent Door
Chamber Made of SS 304
Dual Manifold with One End Fixed and Other Sliding for Variable Part Length
Automatic Door
Air Flushing Integrated with Machine
7" Coloured Touchscreen Operated PLC
4 Port Auto Punch for All OK Parts
High Flow ATS Pump and Valves
SS Mirror Finish Sheet for Better Visibility
AutoCaster Wheels with Support for Machine Structure
Sufficient Lighting Inside Chamber
100 Nos Program Recipe
Data Logging in Excell Format for Each Cycle

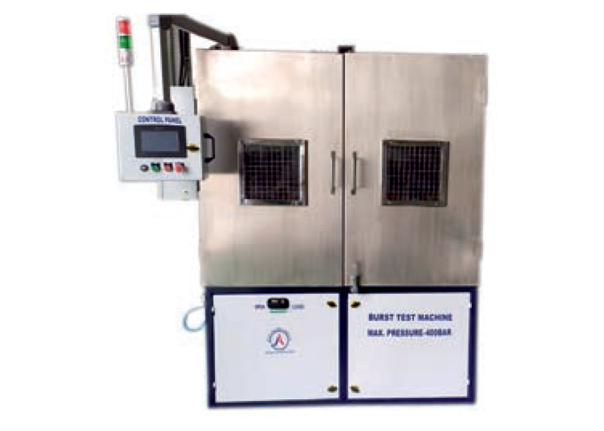

Burst/ Proof Pressure Testing Machine
Available Pressure Upto 5000 Bar
Burst/Proof Options Available
Chamber, Tank and Pipes made of SS 304
7" Coloured Touchscreen HMI Operated
Pressure Increment Rate
Media Water
Multiple Program Recipe - Upto 200 Programs
Data Logging
Graphical Representation of Test Data

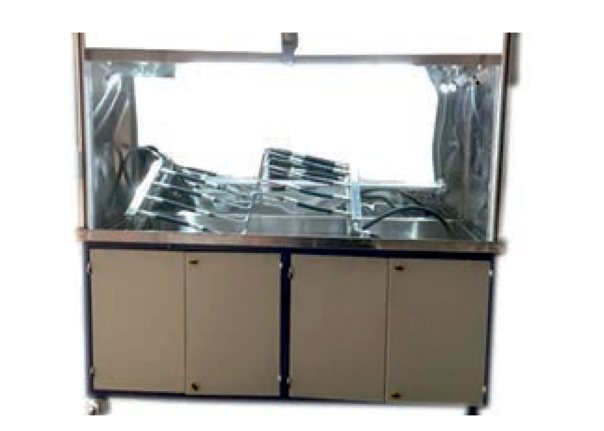

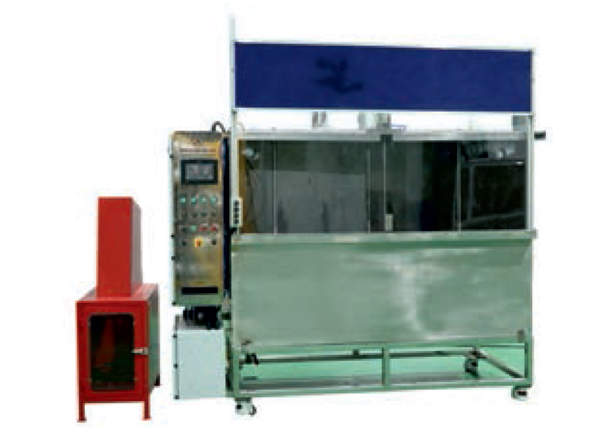

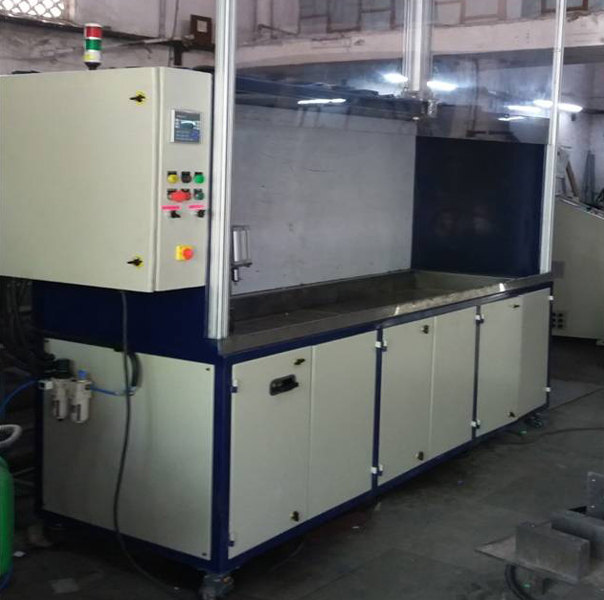

Air Under Water Leak Test Machine
AIR UNDER WATER – LEAK TEST MACHINES
MEDIA - AIR
MAX PRESSURE – 60 BAR
COMMON/ INDIVIDUAL RESULT
DIFFERENT SCREEN SIZE OPTIOS AVAILABLE 2 LINE MONOCHROME DISPLAY TO 7” COLOURED TOUCHSCREEN DISPLAY
TANK MOC SS, STRUCTURE OPTIONS AVAILABLE
ACCURACY AVAILABLE – 0.01% WITH PLC BASED SYSTEM AND 0.001 CC WITH LEAK TESTER
DATA LOGGING
GRAPHICAL REPRESENTATION OF TEST DATA
BARCODE PRINTER INTEGRATION
AUTO AMRKING WITH MARKER/ PUNCH AVAILABLE
REJECTION BIN INTEGRATION
AUTO CLAMPING AVAILABLE
High Pressure Proof Test Machine with 250 Bar, 30 LPM Prefilling Max Pressure – Upto 2500 Bar
TESTING PRESSURE – UPTO 2500 BAR
WITH HYDRAULIC CLAMPING
AIR BLEEDING
SOAP INJECTING
PRE-FILLING AT 250 BAR, 30 LPM
SUITABLE FOR LONG LENGTH HOSES UPTO 100 METER LENGTH
AUTO DRAIN
STRUCTURE OPTION AVAILABLE MS OR SS
WITH SAFETY FEATUES INCLUDING SAFETY SENSORS AND SAFETY VALVES
Burst / Proof Pressure Testing Machine
AVAILABLE PRESSURE UPTO 5000 BAR
BURST/PROOF OPTIONS AVAIALBLE
CHAMBER, TANK AND PIPES MOC SS
7” COLOURED TOUCHSCREEN HMI OPERATED
PRESSURE INCREMENT RATE
MEDIA WATER
MULTIPLE PROGRAM RECIPE – UPTO 200 PROGRAMS
DATA LOGGING
GRAPHICAL REPRESENTATION OF TEST DATA
High Pr. Leak Test M/C 600 Bar with Auto Punch and Rejection Bin and Air Flushing
TESTING PR. RANGE 50 TO 600 BAR
TESTING MEDIA – OIL/WATER
4 PORT COMMON RESULT MACHINE
AUTOMATIC DOOR – POLYCARBONATE TRANSPARENT DOOR
CHAMBER MADE OF SS 304
DUAL MANIFOLD WITH ONE END FIXED AND OTHER SLIDING FOR VARIABLE PART LENGTH
AUTOMATIC DOOR
AIR FLUSHING INTEGRATED WITH MACHINE
7” COLOURED TOUCHSCREEN OPERATED PLC
4 PORT AUTO PUNCH FOR ALL OK PARTS
REJECTION BIN INTEGRATED WITH MACHINE- MACHINE WILL NOT WORK FOR NEXT CYCLE UNTILL REJECTED PARTS DROPED IN REJECTION BIN
HIGH FLOW ATS PUMP AND VALVES
SS MIRROR FINISH SHEET FOR BETTER VISIBILITY
AUTOCASTER WHEELS WITH SUPPORT FOR MACHINE STRUCTURE
EFFICIENT LIGHTING INSIDE CHAMBER
100 NOS PROGRAM RECIPE
DATALOGGING IN EXCELL FORMAT FOR EACH CYCLE

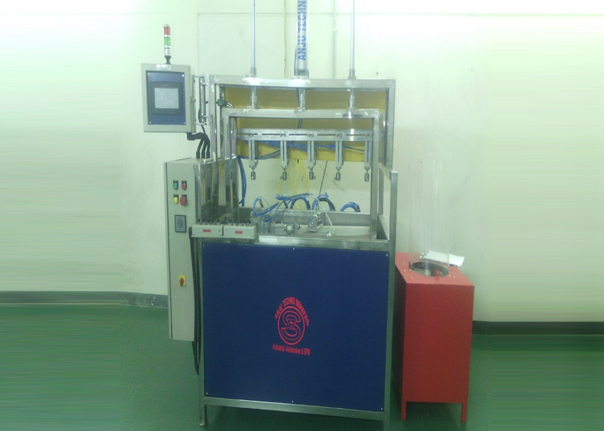

Air Under Water Leak Test Machine 10 Bar, Individual Result, 4 Port
MEDIA - AIR
MAX PRESSURE – 10 BAR
COMMON RESULT
4.3” COLOURED TOUCHSCREEN DISPLAY
ALL STRUCTURE AND TANK IN SS
DATA LOGGING
GRAPHICAL REPRESENTATION OF TEST DATA
AUTOMATIC PRESSURE SETTING FROM PLC
AUTO CLAMPING INTEGRATED WITH NG CYCLE (IN CASE OF OK PARTS WILL DE-CLAMP AUTOMATICALLY, IN CASE OF NG PASSWORD REQUIRED TO DECLAMP PARTS FROM FIXTURE)
REJECTION BIN INTEGRATION
Air Under Water Leak Test Machine 10 Bar, Individual Result, 4 Port
MEDIA - AIR
MAX PRESSURE – 10 BAR
COMMON RESULT
4.3” COLOURED TOUCHSCREEN DISPLAY
ALL STRUCTURE AND TANK IN SS
DATA LOGGING
GRAPHICAL REPRESENTATION OF TEST DATA
AUTOMATIC PRESSURE SETTING FROM PLC
AUTO CLAMPING INTEGRATED WITH NG CYCLE (IN CASE OF OK PARTS WILL DE-CLAMP AUTOMATICALLY, IN CASE OF NG PASSWORD REQUIRED TO DECLAMP PARTS FROM FIXTURE)
