Motorised Cylinder carrying conveyor with Forwards and backward movement of cylinders.
Motorised cylinder rotating mechanism over conveyor system

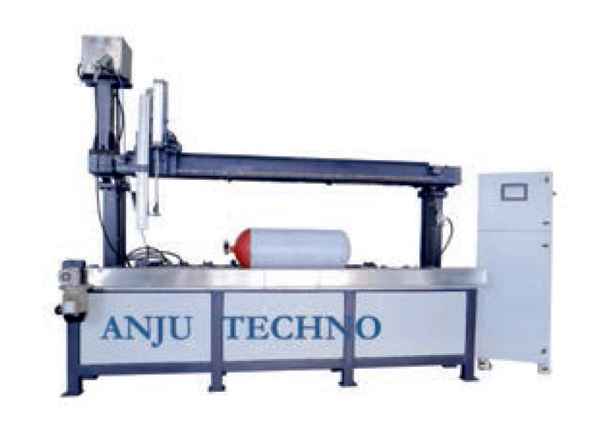

Motorised movement of ultrasonic probe carrying system to sense cylinder surface for detection
Continuous water sprinkling over cylinder surface for better detection provision
Automatic and Manual Mode of operation
Tilting Machine

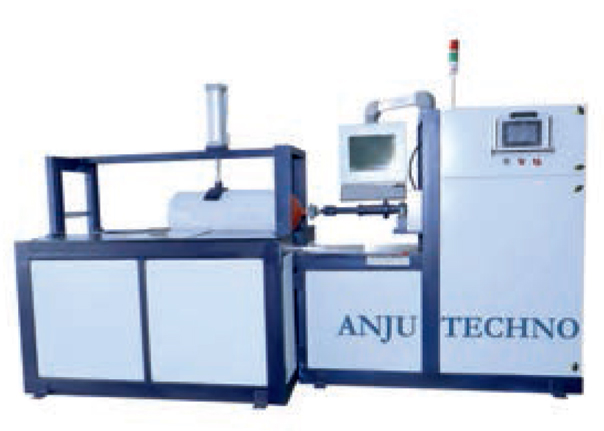

Valve Fitting
PLC Control torque tightening mechanism over CNG cylinders
Incorporation of Torque transducer for measuring torque value
Motorised rotation to generate required torque for tightening provision

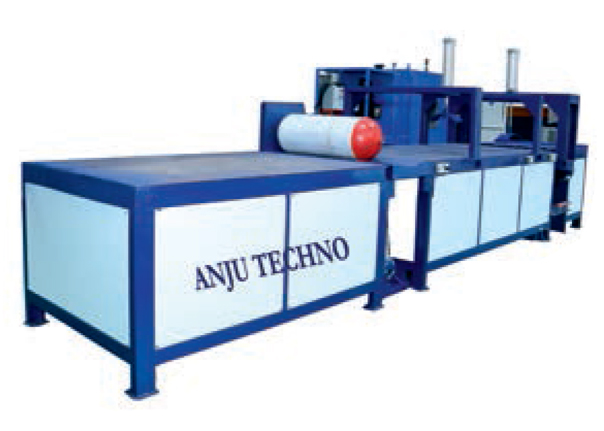

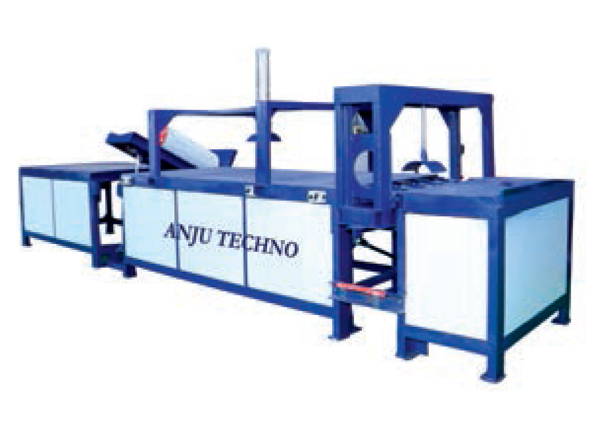

Motorized Conveyor system carrying Cylinders for to and from movement of Cylinder
Pneumatic operated Cylinder clamping mechanism
Pneumatic operated cylinder unloading mechanism
Automatic and Manual mode of operation
Weighing balance integration for locking tightening cylinder weight
Desktop PC for Data Logging and Report Generation.
Report Generated in excel formal
Single station with provision of torque tightening of single cylinder at a time

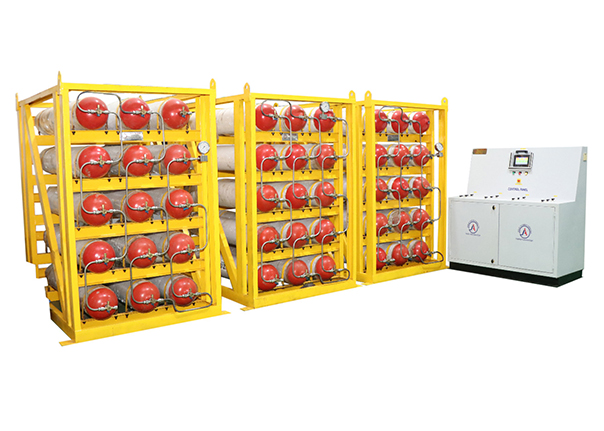

Cascade System
Cascade are made with three storage bank system with Non Return valves.
These are Low, medium and high banks.
This bank system are used as per convenience or requirement for CNG dispensing. Isolation valves at each cylinders and safety relief valve provided to ensure safety.
Each cylinder is manufactured and tested as per guidelines of PESO
Cylinders are well placed at a defined distance from each other and fitted with SS tubes of SS-316/316L Grade with suitable fitting confirming ASME A 269.
It is a bunch of 45 cylinders of 75 water liters each. At 250 Bars with gas density of 0.7 Kg/Its it can stored 530 Kgs. approx. CNG. This quantity may vary place to place. This is reliable due to its robust design, manufacturing and testing. It is feasible due to its low cost.
Cyclic Test Machine

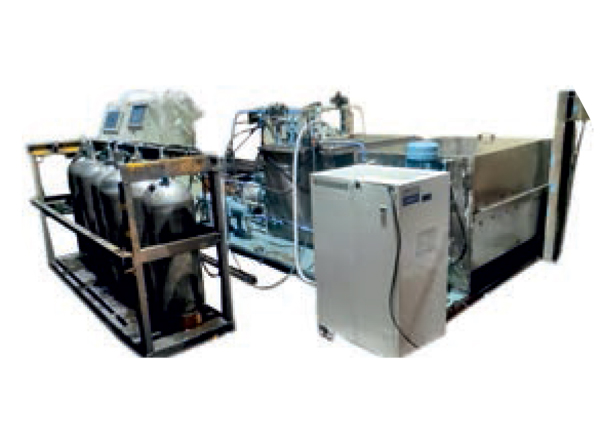

PLC controlled cng cylinders impulse cyclic test machine
No. of ports-6, Media- Oil
Common pressure will be displayed for all the 6 ports
There will be graphical representative of pressure over PLC display:
There will be a continuous cycle of pressure increase and decrement cycle.
Maximum Pressure- 400bar. Set pressure will be editable by user.
Pressure is generated by Hydraulic mean by incorporating pressure intensifier to build up pressure by bidirectional movement of center plate/piston.
Incorporation of dual pump circuitry for higher flow to increase Cycle per minutes. Rated CPM will be 15.
Incorporation of temperature sensor for continuous temperature logging of test cylinders and media temperature
Incorporation of automatic pressure drain valve (common for all 6 ports) for pressure drain provision
Incorporation of proportional valve to control pressure as per set pressure limit.
Integration of desktop pc for continuous Data logging in excel format consisting date,time, set pressure actual pressure, cylinders temperature and tank temperature
